Inputs/Outputs
System Connection
USB-C 3.1/3.2 Gen 2
Video I/O
Input
1x HDMI 2.1 Female
Output
1x HDMI 2.1 Female (Pass-Through)
Audio I/O
Input
1x 1/8" / 3.5 mm TRS Analog
Format Support
Video Resolution
HDMI Input/Output (8/10-Bit 4:4:4/4:2:2/4:2:0 RGB)
3840 x 2160 at 30/50/60/120/144 fps
2560 x 1440 at 30/50/60/120/144 fps
1920 x 1080 at 60/120/144/240 fps
1280 x 720 at 60/120 fps
Audio Format
Unspecified Digital Signal Input/Output
Embedded Audio
HDMI
Standards
HDR Support
Yes: HDR10
Broadcast System Compatibility
NTSC
Hardware
OS Compatibility
Windows 10 or Later
General
Dimensions
4.4 x 2.8 x 0.7" / 112 x 72 x 18 mm
Weight
3.2 oz / 91 g
Items Included

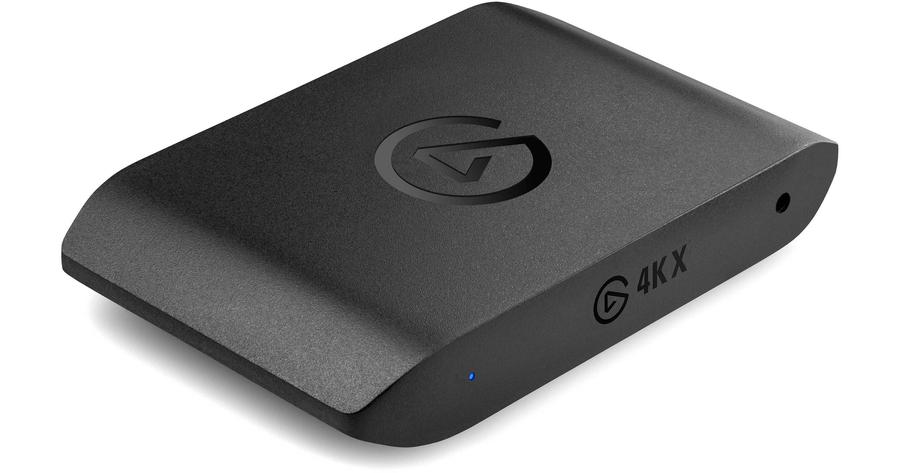

Elgato Game Capture 4K X
HDMI 2.1 Cable (78.7")
USB-C 3.2 Cable (59")
